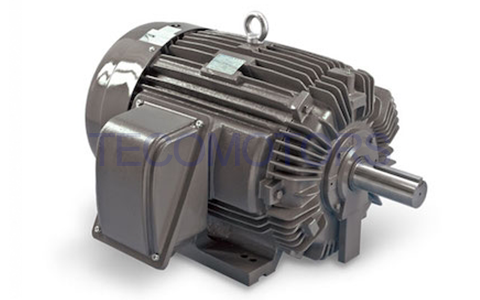

TECO NEMA General Purpose Motors

NEMA Premium,CE、CSA、UL。

TECHNICAL DATA

Class: Three phase induction motors

Design standard: NEMA MG-1，MG-13,IEEE-841

Rated voltage: 220/380V or other voltage

Rated frequency: 50Hz or 60Hz

Outpupt range: 0.75KW～260KW

Time duty: Continuous S.F1.15 or (SF1.0～1.3）)

Frame Nos: 143T～449T

Protection enclosure: Totally enclosed (IP54、IP55)

Cooling method: Self external fan, Surface cooling (IC411)

Stator insulation: Class F insulation system
